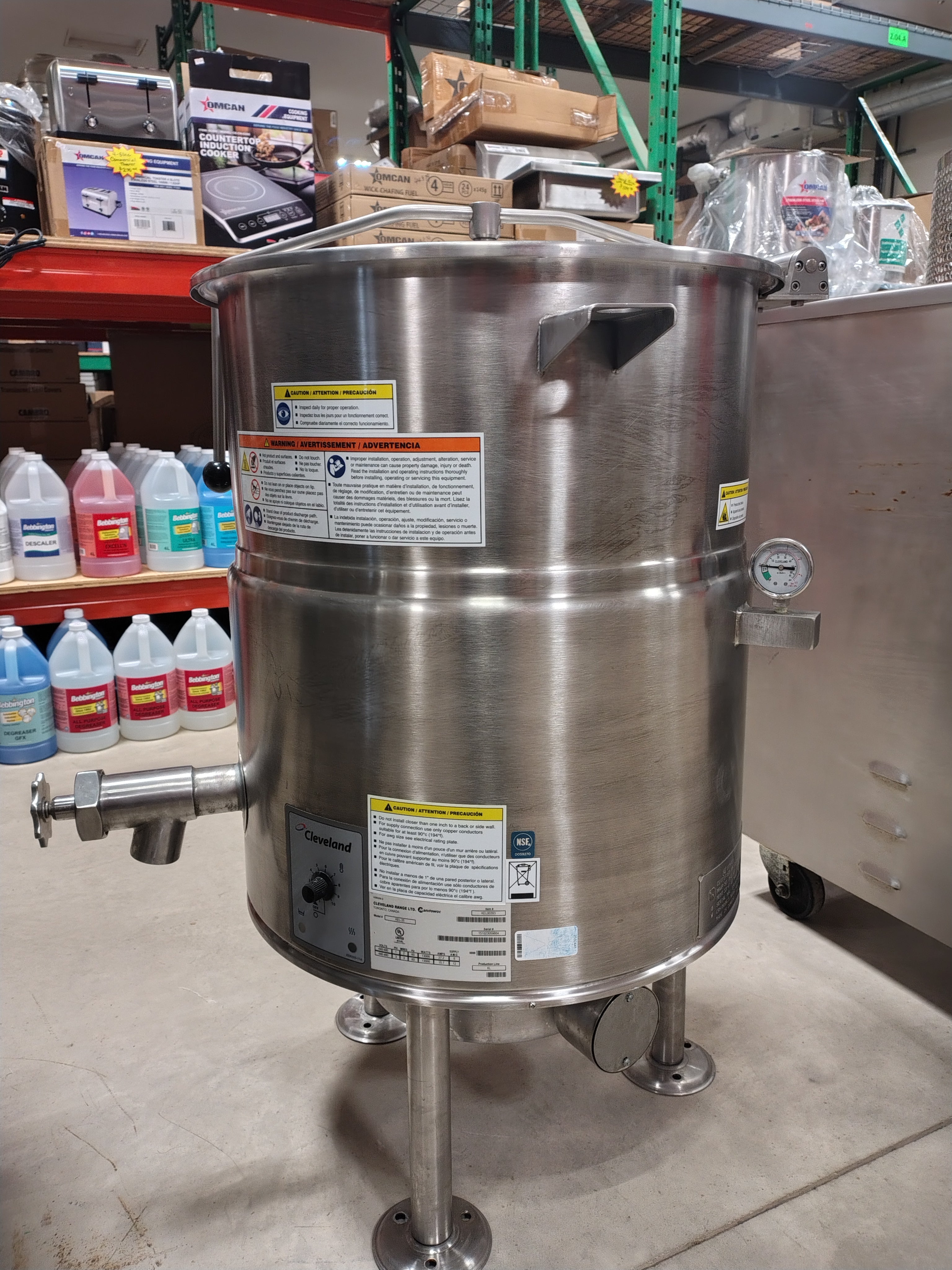

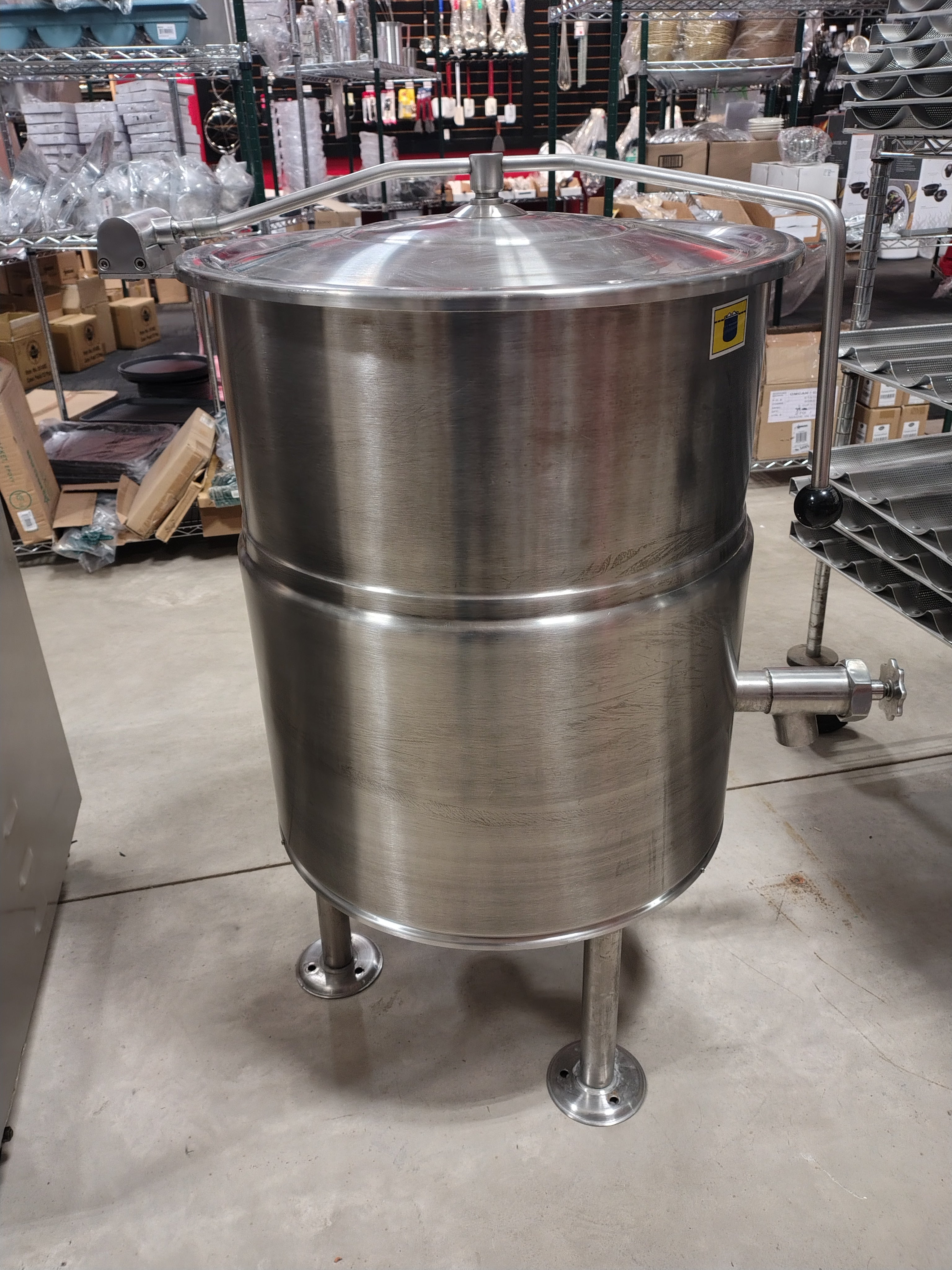

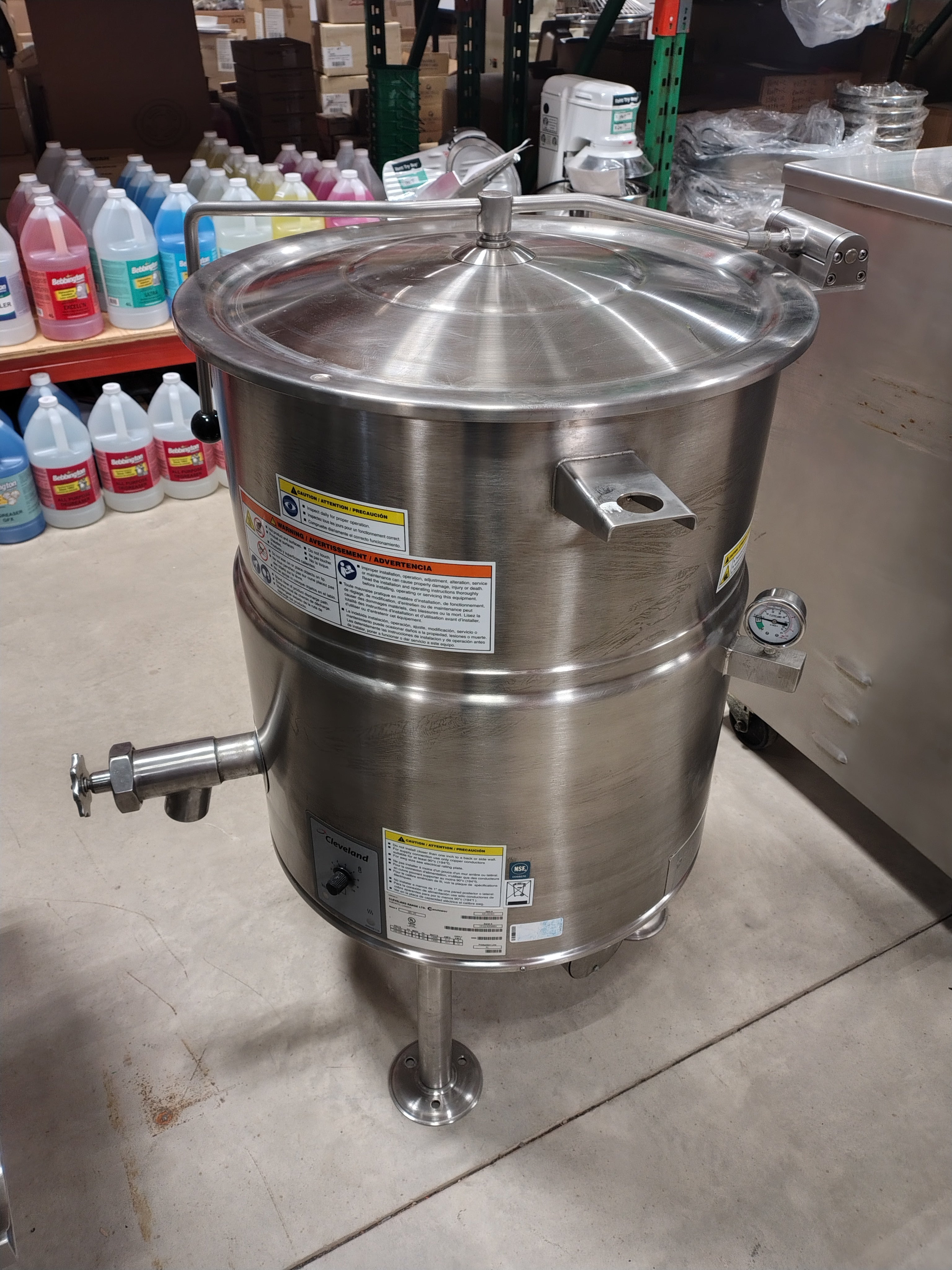

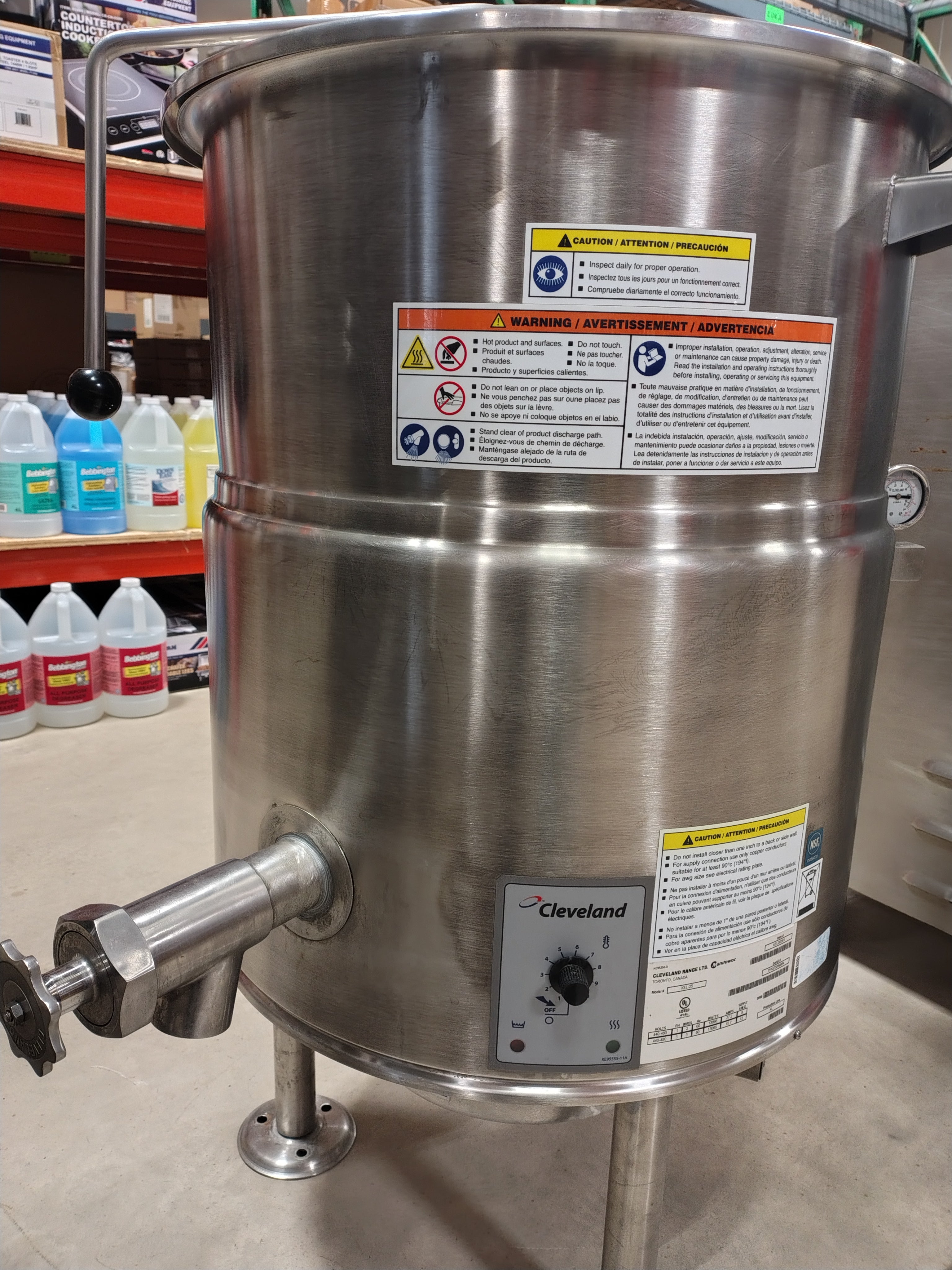

Cleveland KEL-25 Tri Leg Electric Kettle
STATIONARY, “SPLASH PROOF SERIES”, SELF-CONTAINED 2⁄3 STEAM JACKETED, 25 GALLONS (100 LITERS)
It is important to note that we have tried to provide accurate information on this product, but because certain models are older or come without specific identification or manuals, not every feature/specification may match exactly.
Item Features
-
Self-contained, easily installed - needs only an electrical hook-up.
-
Steam jacket filled with treated water, venting and/or refilling is not required.
-
Accurate, consistant solid state temperature controls (mechanical thermostate not as accurate) - less than ±1°C variance (ideal for simmering). Operating temperature range from 145° - 260°F (63°C - 127°C)

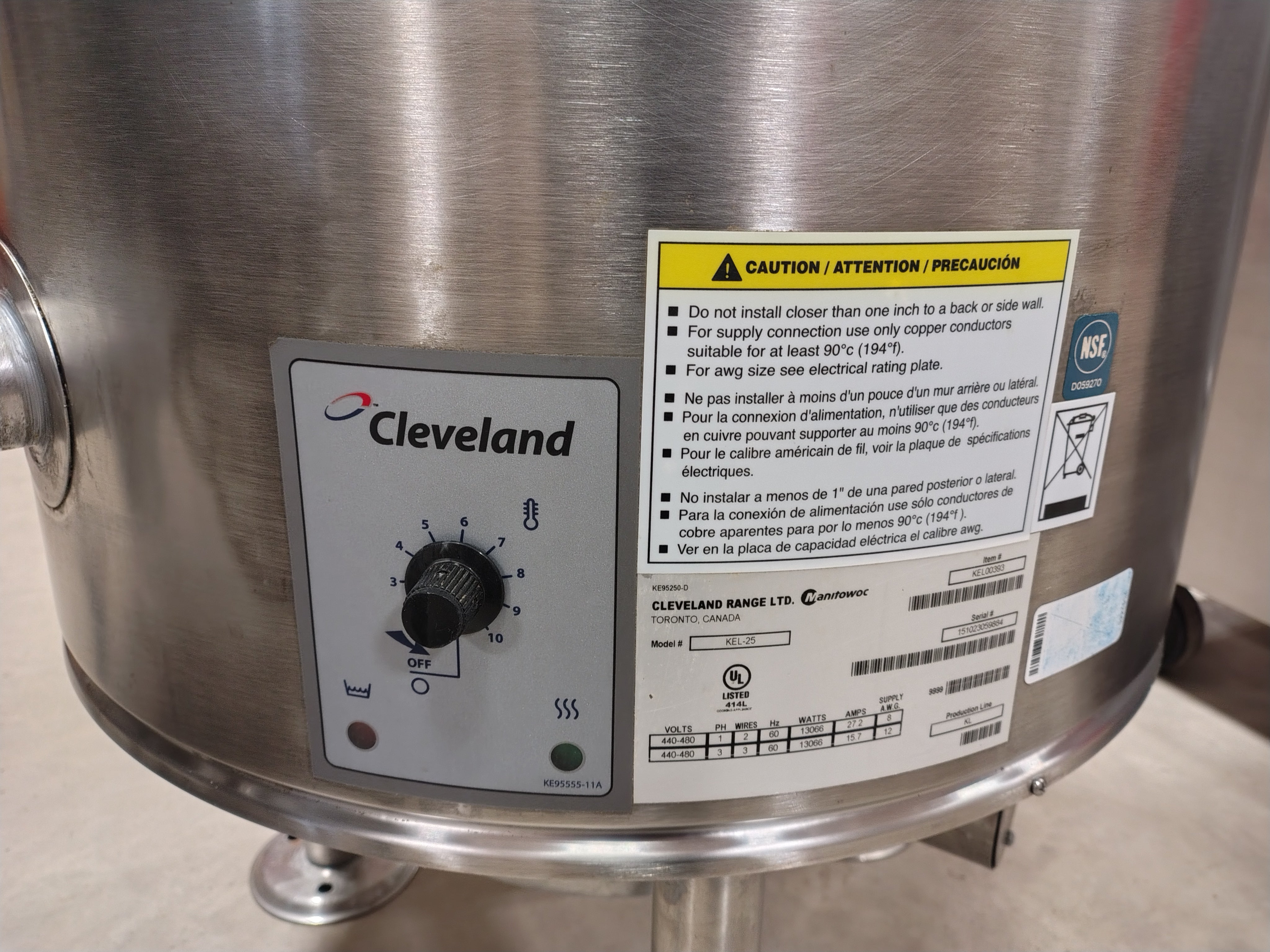

Control panel includes:
• LED indicator for heat cycle • LED indicator for low water
• Power ON/OFF switch • Adjustable temperature control dial - Water resistant controls, splash-proof construction.
- Re-inforced rolled rim design prevents damage to kettle rim,
eliminates "bar rim designs". - Welded-in heating elements, (holds vacuum better, won't leak
or loose water) - Easily cleaned: kettle and all exterior surfaces are of type 304 stainless steel with an #4 finish

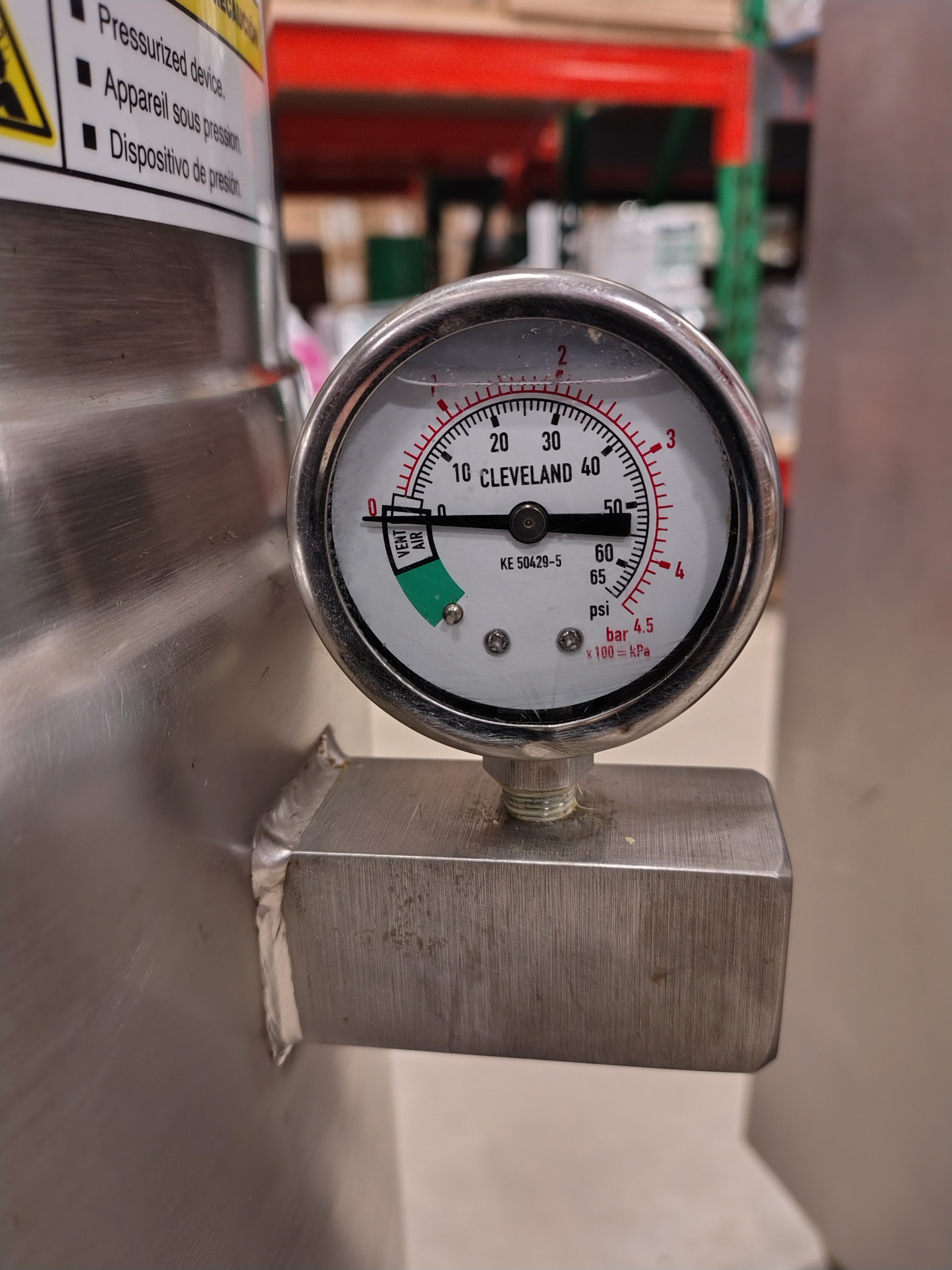

- Rear mounted easy access pressure gauge and pressure relief
valve to prevent tampering. Color coded easy to read pressure gauge with "green" and "vent air zone" - 50 psi steam jacket rating for higher cooking temperatures
- 50 psi safety valve
- Solid state water level control (no sight glass gauge to break or leak)
- Splash proof element cover with a double gasket seal
- Faucet mounting bracket
- 2˝ diameter tangent draw-off valve with drain strainer
- 1 5/8˝ O.D. tri-leg supports with level adjustable feet for floor bolting

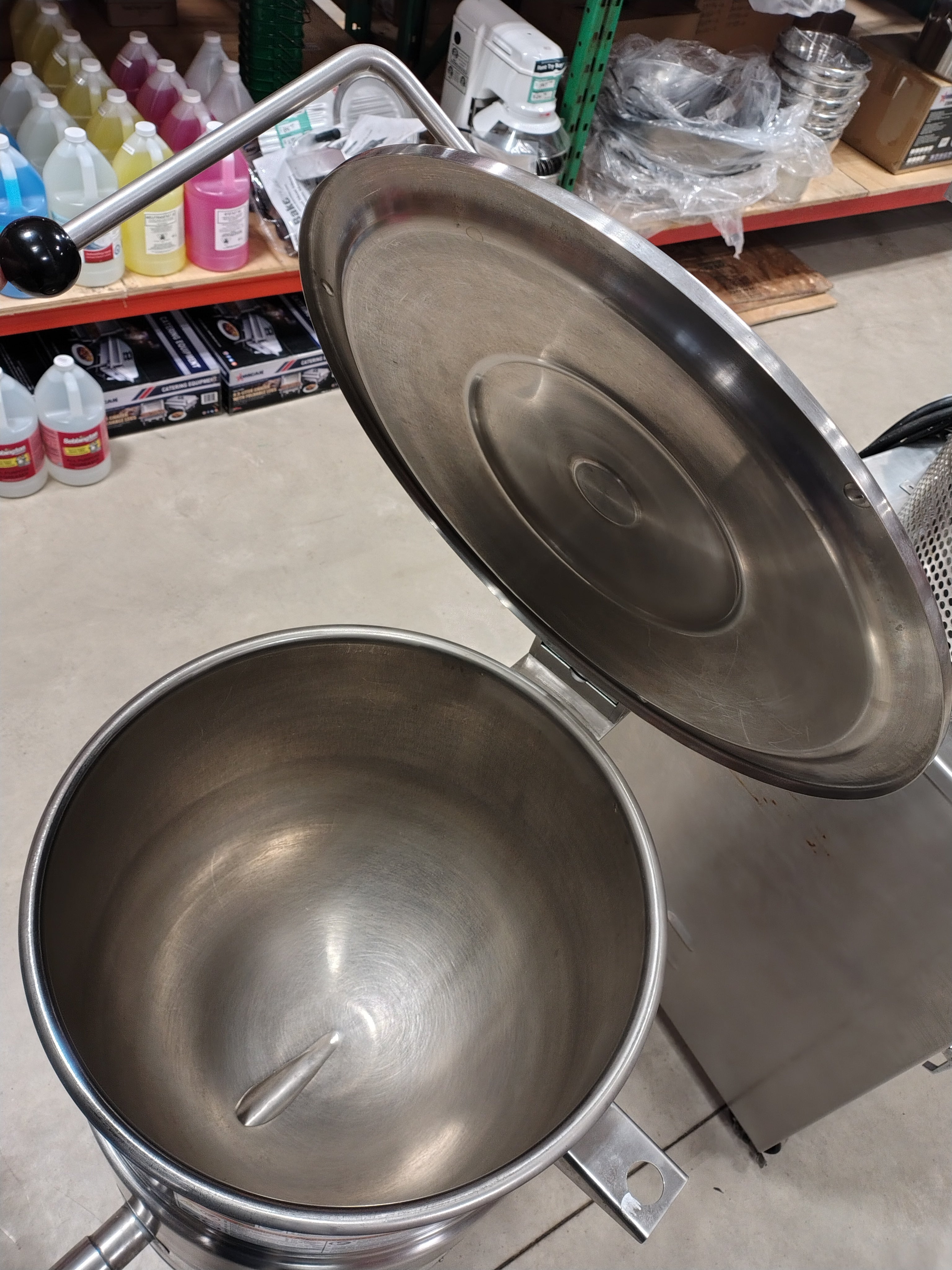

- Spring-assisted, hinged, rotatable, domed stainless steel cover
- Standard voltage is 208-240 volts, 60 Hz, 3-phase, 3-wire
- Typical approvals include UL., CSA, CE, NSF and ASME

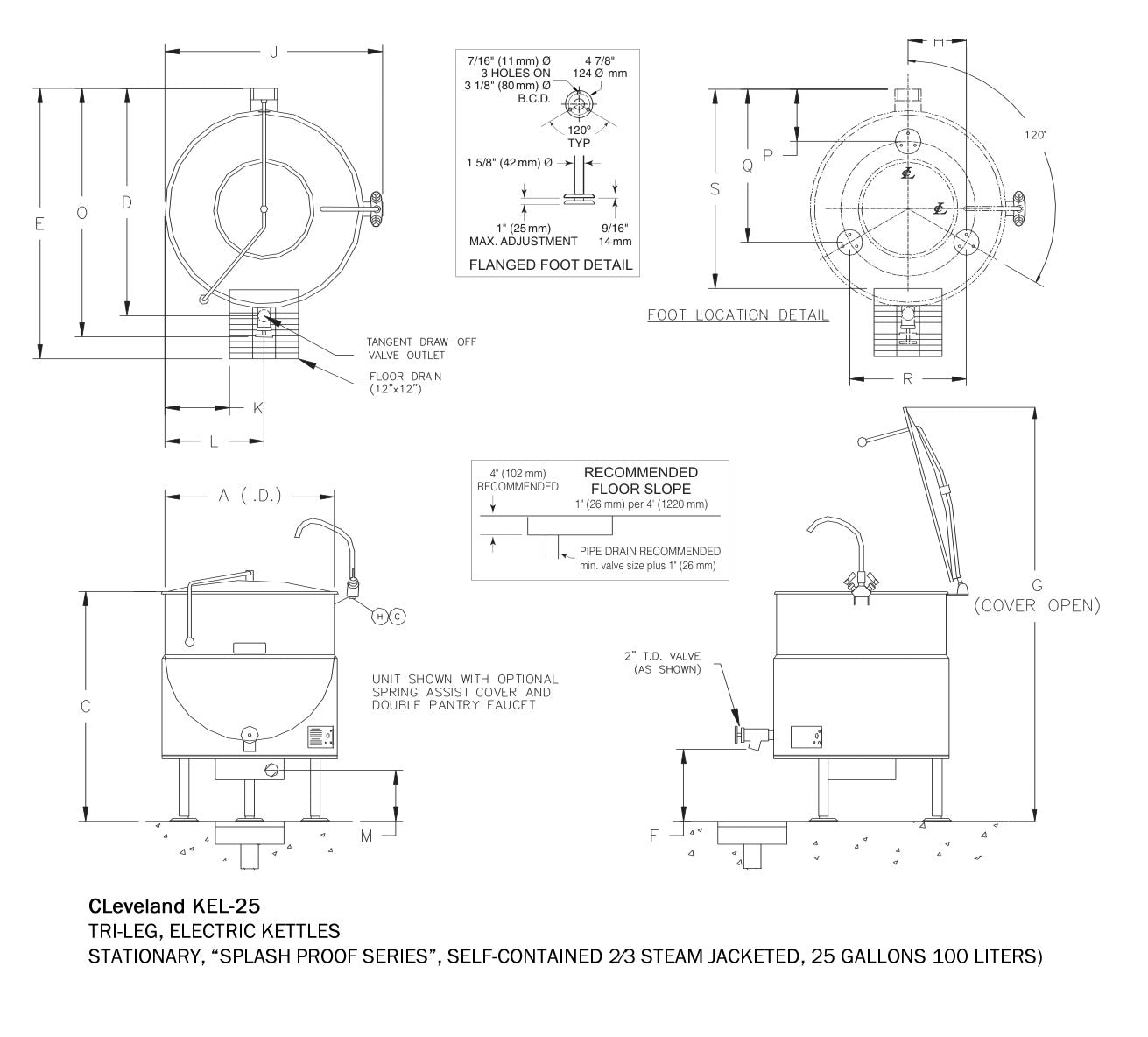

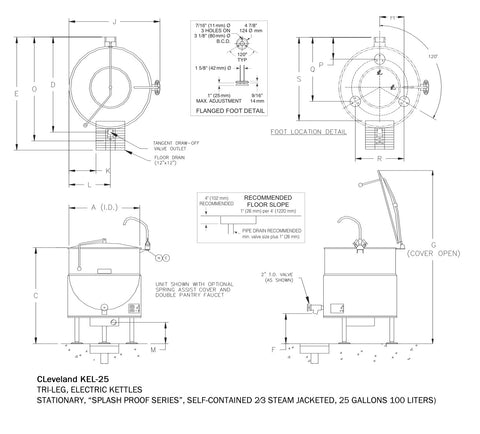

Weight and Dimensions
- Shipping Weight: 230 lbs.(105 kg)
- A: 21" (534 mm)
- C: 36 3/4" (934 mm)
- D: 21 7/8" (556 mm)
- E: 34" (864 mm)
- F: 13 7/8" (353 mm)
- G: 60 3/4" (1544 mm)
- H: 17 7/8" (455 mm)
- J: 29 7/8 (759 mm)
- K: 5 1/4" (134 mm)
- L: 11 1/4" (286 mm)
- M: 9 3/4" (248 mm)
- N: 7 1/2" (191 mm)
- O: 26 3/4" (680 mm)
- P: 4 5/8" (118 mm)
- Q: 20" (508 mm)
- R: 15 1/2" (394 mm)
- S: 22 3/8" (569 mm)
Capacities
(In 8 oz. servings, other sizes may be calculated.)
- 25 Gallons / 100 liters (400 servings)
Clearance
- RIGHT = 0 | LEFT = 0 | REAR = 0
Allow 12' minimum on right side of servicing
Standard Wattage:

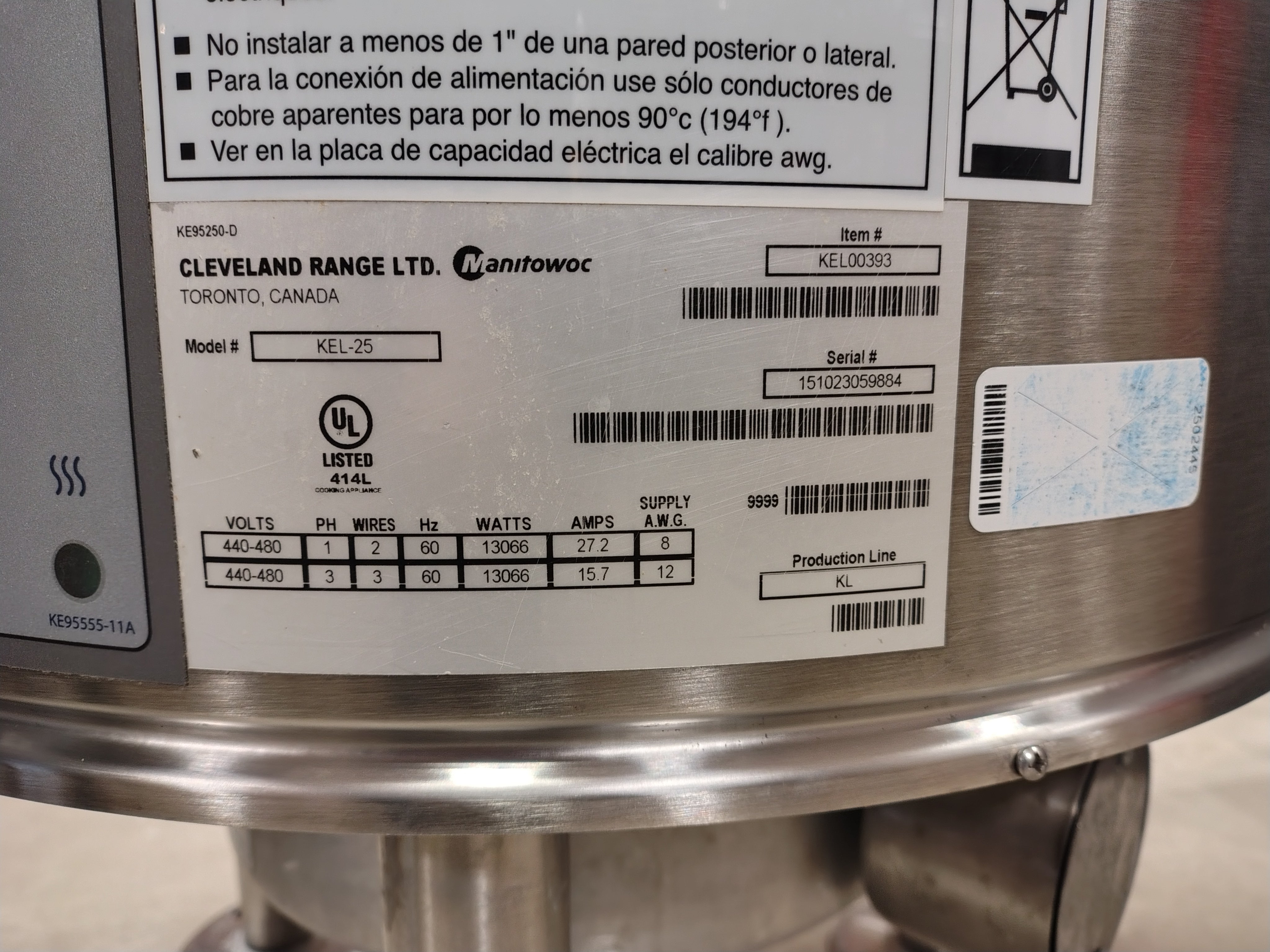

- Volts: 480 | Amps: 1PH (27.2) | 3PH (15.7)| kW: 13.1
High Wattage:
- Volts: 480 | Amps: 1PH (40.8) | 3PH (23.6)| kW: 19.6
This is a brand new product. It no longer has factory warranty or factory packaging. We as a reseller will warranty this machine for parts only from factory defects for 90 days from invoice date. No warranty on the key pay however we can send video of machine and keypad working. Please don’t hesitate to contact us for more details.
