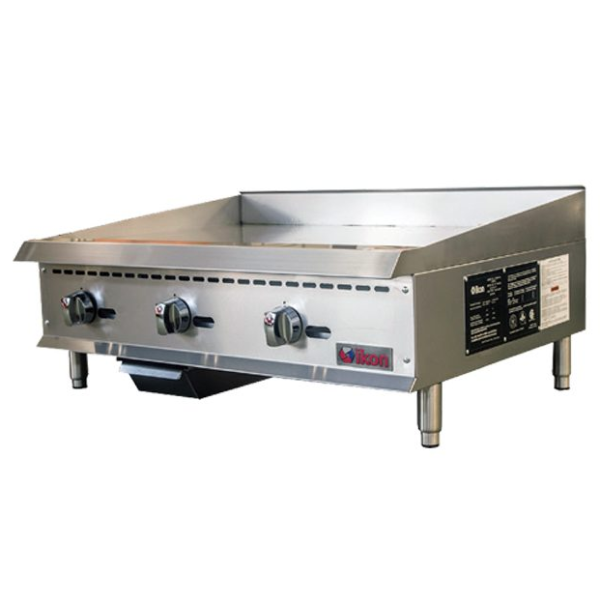

Ikon IMG-36 - 36" Manual Gas Griddle - 90,000 BTU

  • CAD Regular price $1,196.00


Key Features:

      • 36" x 20.5" cooking area
      • 90,000 BTU per hour
      • 3 burners
      • Adjustable manual gas controls provide easy and safe operations
      • Available with natural gas or liquid propane, conversion kit included
      • Continuous 30,000 BTU output per burner provides even heat to the 3/4"-thick polished steel griddle plate
      • Pilot light can be lit from the front for ease of use
      • "U"-shaped burners provide even heat distribution every 12"
      • Gas control knob every 12"
      • All stainless steel cabinet
      • Double wall insulated sides
      • Cool-to-the-touch front edge
      • Back and side splash guards fully welded to griddle plate
      • Flue located on back of unit for ample ventilation
      • Adjustable stainless steel legs, non-skid feet
      • 1-year parts and labour warranty

Specifications:

Brand Ikon
Model IMG-36
Burners 3
BTU/Hour 90,000
Controls Manual
Cooking Area (WD) 36" x 20.5"
Dimensions (WDH) 36" x 34.4" x 15.5"
Weight 220 lb
Shipping Dimensions (WDH) 41" x 37" x 20"
Shipping Weight 284 lb

Documents:

Spec Sheet
