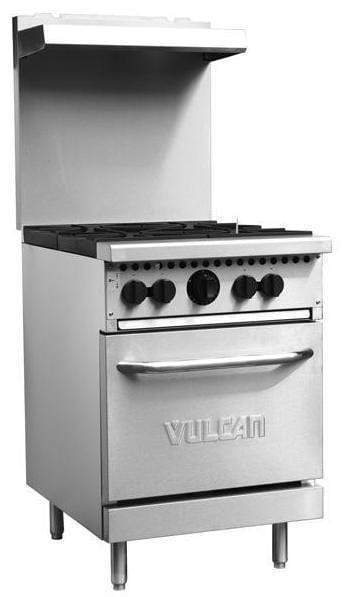

The Vulcan SX24-4B is a compact, high-performance 24-inch commercial gas range equipped with 4 open top burners and a space saver oven. Designed to deliver both reliability and value, this range is ideal for kitchens where space is limited but productivity is essential. The space saver oven accommodates a full-size bake sheet front to back, offering excellent versatility in a smaller footprint.
Each of the 4 open burners delivers 28,000 BTU per hour and features lift-off heads for easy cleaning and maintenance. A shrouded flash tube pilot system supports 1 pilot per 2 burners for safe and efficient ignition. The 12-inch by 12-inch cast top grates include aeration bowls to optimize flame distribution and cooking consistency.
The standard oven provides 30,000 BTU per hour of heating power and features a spacious cavity measuring 20.6" x 25.5" x 13.7" (width, depth, height). The oven thermostat adjusts from 250° to 500° Fahrenheit (121.1° to 260° Celsius), allowing for a wide range of baking and roasting applications. It comes with 1 oven rack and 4 rack positions for flexible cooking configurations.
Constructed with a stainless steel front, sides, backriser, and lift-off high shelf, the SX24-4B is built for long-lasting durability in demanding kitchen environments. It stands on 6-inch stainless steel adjustable legs and includes a 0.75-inch rear gas connection and gas pressure regulator for simple installation. This range comes with a 1-year parts and labour warranty.
Features
- 24" commercial gas range with space saver oven
- 4 open top burners at 28,000 BTU/hour each with lift-off heads
- Shrouded flash tube pilot system (1 pilot per 2 burners)
- 12" x 12" cast top grates with aeration bowls
- 30,000 BTU/hr. standard oven
- Oven cavity dimensions: 20.6" x 25.5" x 13.7" (WDH)
- Oven thermostat adjustable from 250° to 500° F (121.1° to 260° C)
- 1 oven rack with 4 rack positions
- Stainless steel front, sides, backriser, and high shelf
- 6" stainless steel adjustable legs
- 0.75" rear gas connection and gas pressure regulator included
Specs
Model SX24-4B
Burners 4
Dimensions (WDH) 24" x 32.5" x 55"
Oven 1 Space Saver Oven
BTU/Hour 142,000
Shipping Weight 350 lb
