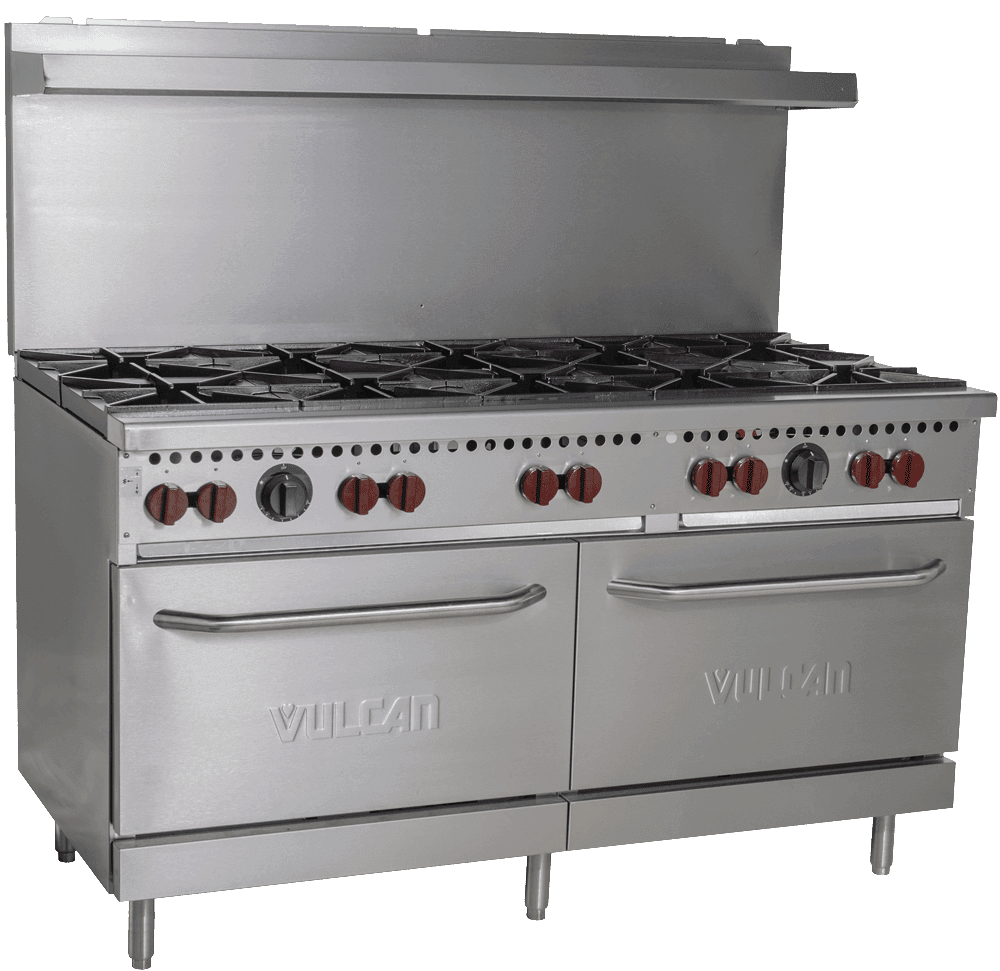

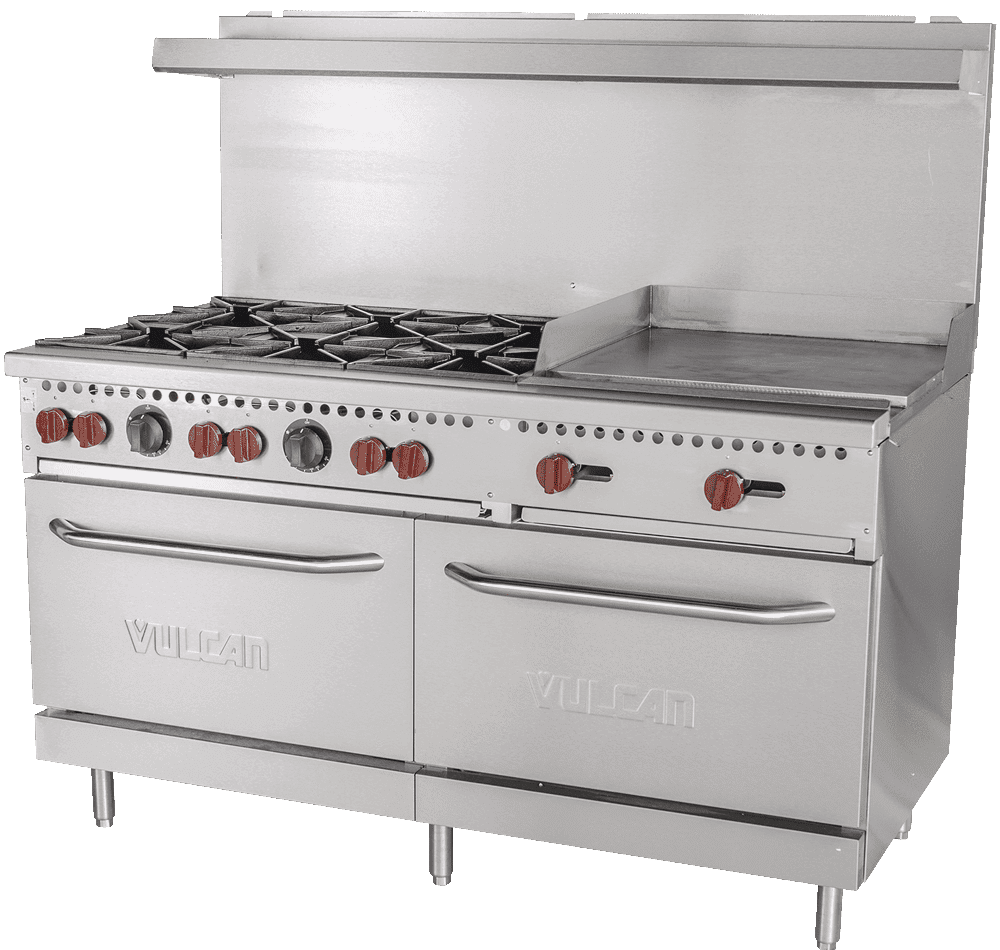

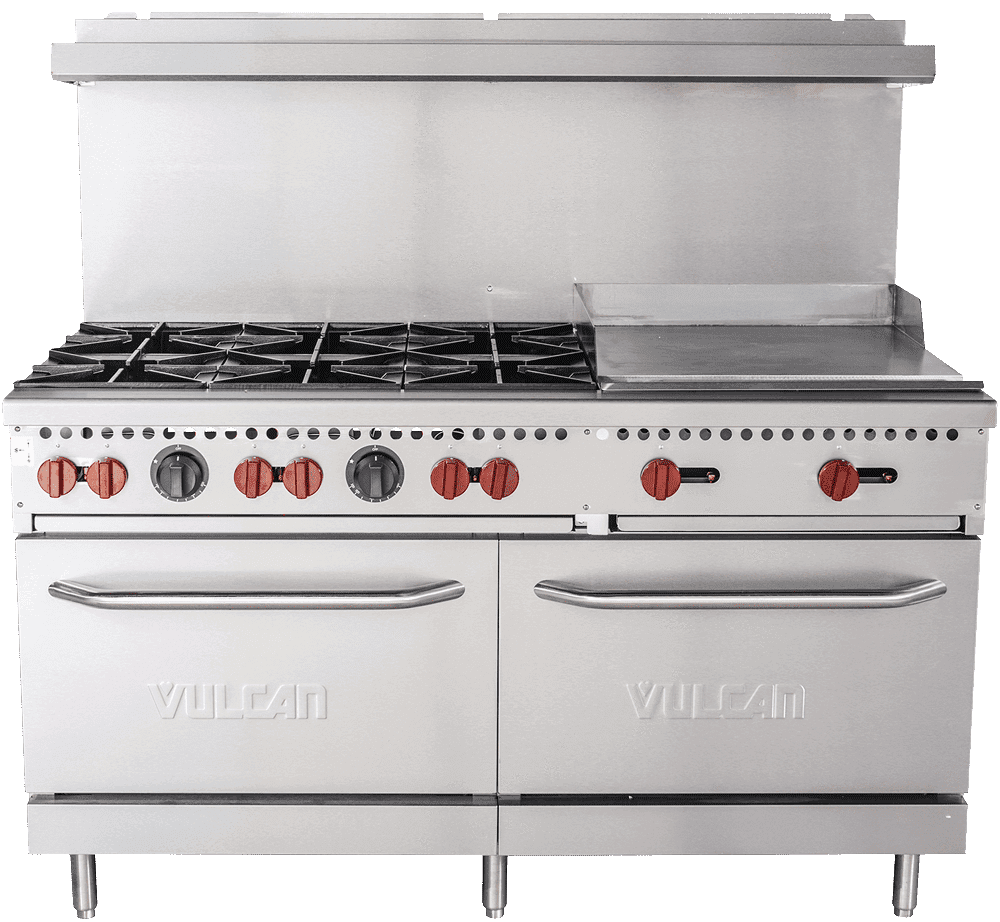

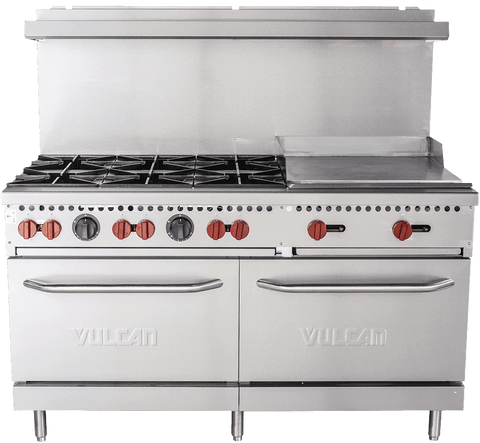

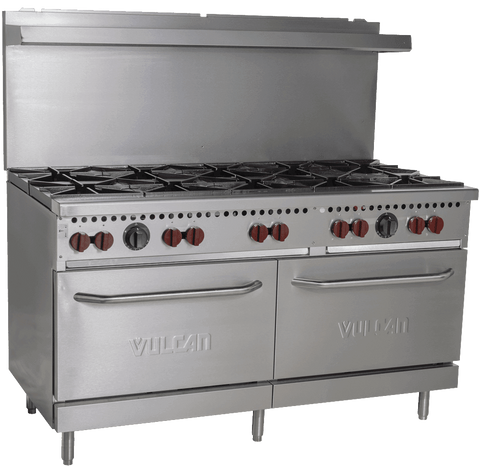

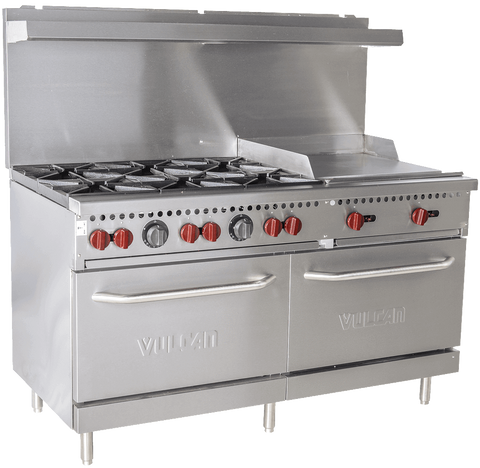

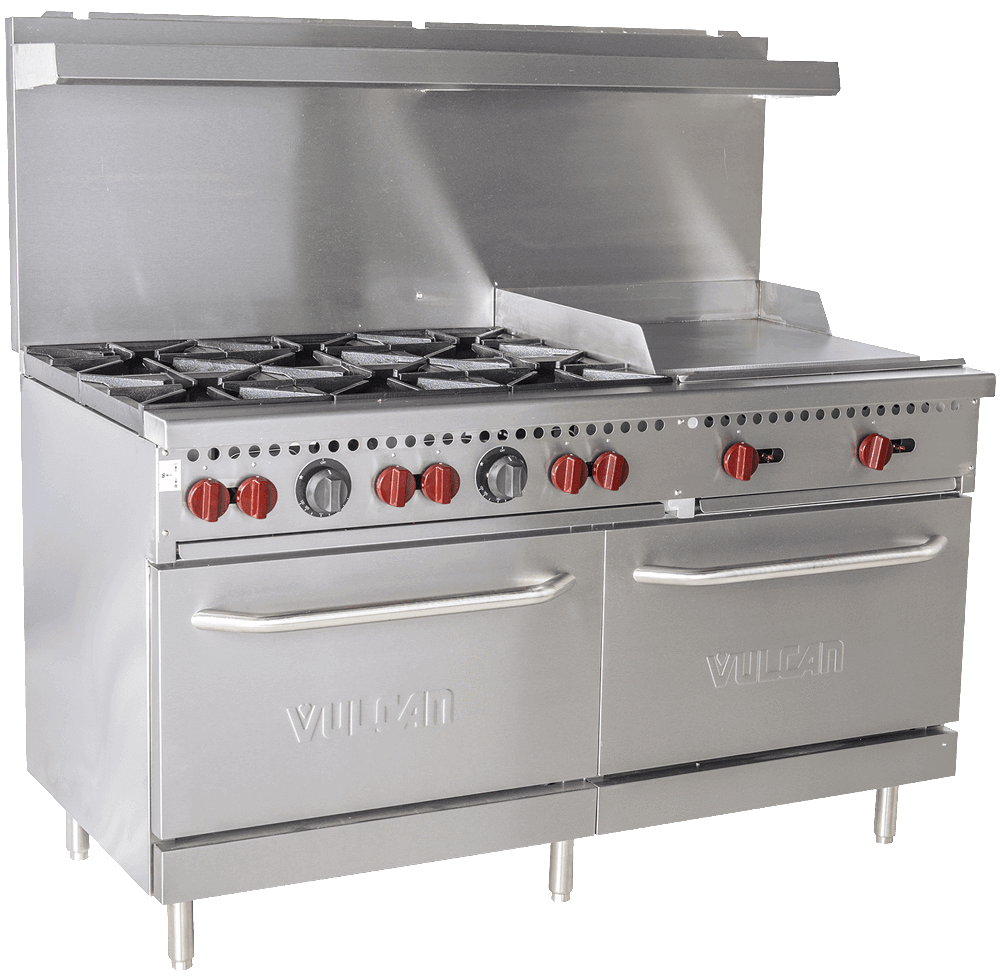

The Vulcan SX60F is a versatile 60-inch commercial gas range designed for high-demand kitchens that require both extensive cooktop space and baking capacity. It is available in two configurations: 10 open-top burners or 6 open-top burners paired with a 24-inch manual griddle. The unit can be ordered for use with either natural gas or liquid propane, allowing flexibility to meet specific installation requirements.
Each of the 28,000 BTU per hour open-top burners features a lift-off head for easy maintenance and cleaning. The 12-inch by 12-inch cast top grates include integrated aeration bowls for optimal flame distribution, enhancing cooking performance. Beneath the cooking surface is a welded crumb tray for efficient debris collection and easy cleanup.
The SX60F includes 2 standard ovens, each with a spacious interior measuring 26.75" wide by 26" deep by 13.75" high. The ovens are equipped with thermostats that adjust from 250° to 500° Fahrenheit (121.1° to 260° Celsius), accommodating a wide range of baking and roasting applications. Each oven includes 1 rack and 4 rack positions to support flexible cooking configurations.
The range features a durable stainless steel front, backriser, and lift-off high shelf, as well as 6-inch stainless steel adjustable legs for sturdy support and leveling on uneven kitchen floors. The SX60F combines robust construction with high-performance functionality, making it a reliable centerpiece in any commercial kitchen.
Features
- 60" commercial gas range with 2 standard ovens
- Available with 10 open-top burners or 6 burners and 24" manual griddle
- Natural gas or liquid propane configurations available
- 28,000 BTU/hr. open-top burners with lift-off heads
- 12" x 12" cast top grates with aeration bowls
- Welded crumb tray for easy cleanup
- Oven cavity dimensions: 26.75" x 26" x 13.75" (WDH)
- Oven thermostat adjusts from 250° to 500° F (121.1° to 260° C)
- 1 oven rack and 4 rack positions per oven
- Stainless steel front, backriser, and lift-off high shelf
- 6" stainless steel adjustable legs
Specs
Brand Vulcan
Models SX60F-6B24G, SX60F-10B
Documents
Spec Sheet for 6 Burners + Griddle Model
Spec Sheet for 10 Burner Model
