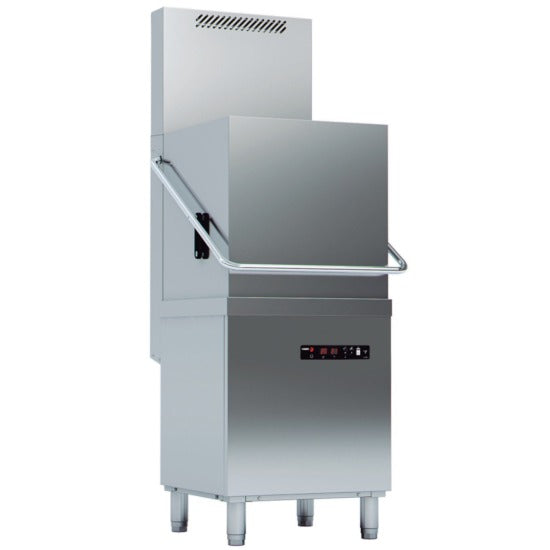

FAGOR COP-174W-HRS - 25" Ventless High Temp Hood-Type Dishwasher w/ Heat Recovery System- 38 Racks/Hr

Fagor’s Concept + range of dishwashers offer a highly efficient and effective washing and rinsing system, becoming the perfect solution for those locations with a low-pressure water network and high production requirements. They are made in durable stainless steel, with electromechanical components and simple digital controls for a user-friendly operation.

Effi Wash: Optimized hydraulic system provides strong mechanical action combined with optimum clean water in the tank. Balanced power maintains the perfect sanitation temperature throughout the wash cycle.

Effi Rinse: Built-in water pressure pump and air break system assure the best sanitation results with a linear 180°F full rinsing cycle. It also operates with low input water pressure, fitting installations that do not reach the minimum recommended level.

Soft Start: Wash-pump power control prevents wares from damage at the beginning of the washing cycle while ensuring a low noise level in your facility.

Digital Controls: Simple digital control panel for intuitive and user-friendly operation.

• (1) Flat Rack, (1) Peg Rack Included
• Hold 1 Rack Total
• (38) Racks/Hour Capacity
• Adjustable (Straight-Thru/Corner) Operation
• 3 Wash Cycles (55-75-120)
• Type 304 Stainless Steel Construction
• Adjustable Legs

• EVO CONCEPT+ (19075019) Dishwasher
• hood type
• ventless
• heat recovery system
• IPX4 electronic controls
• high temperature with built-in 70 deg. rise booster
• adjustable (straight-thru/corner) operation
• 3 wash cycles (55-75-120) plus 50 sec. heat recovery
• EFFI rinse linear system
• (38) racks/hour capacity
• type 304 stainless steel construction
• stamped one piece tank
• rock counterbalanced door
• ECO autofill system
• electric tank heat
• built-in detergent & rinse aid dispenser
• water pressure pump
• adjustable legs
• 1 HP wash pumps
• 18.76 kW total
• ETL|cETLus|CE
• Each unit comes standard with one (1) flat rack, one (1) peg rack and one (1) cutlery container.

• Vent-less, Heat-Recovery System: Preheats the incoming water and condensates steam.
• Stainless steel body structure with stamped design (wash tank, rack guides, control panel), made to resist heavy usage.
• AISI-304 stainless steel. Independent wash & rinsing arms, tray filters.
• Field adjustable straight-through or corner operations.
• Higher clearance: 17".

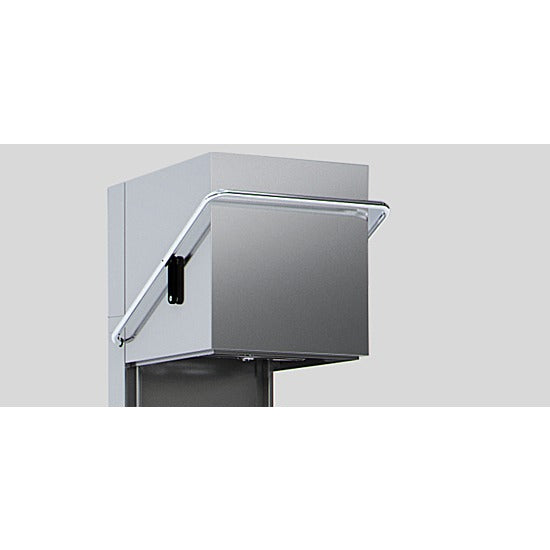

• Advanced soft-lift counterbalanced system and magnetic switch for the hood.
• IPX4 - Stronger protection against water hose cleaning and external humidity.
• Multi-connection box: Conveniently located electrical box for easy access that improves maintenance and allows for single or three phase and multi-tension connection in the field.
• Built-in detergent and rinse aid dispenser.
• Built-in rinse pump.

Product Specifications
