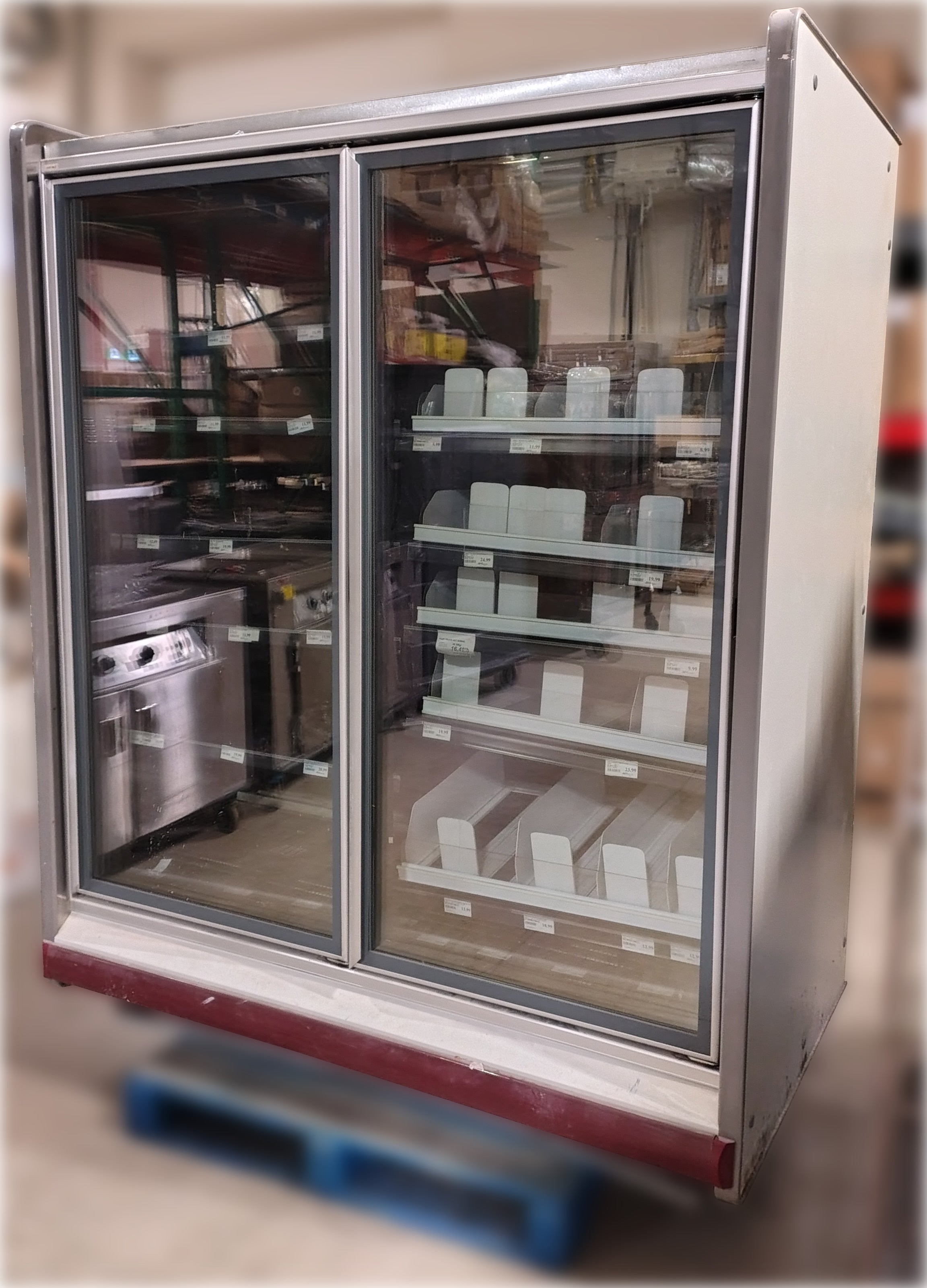

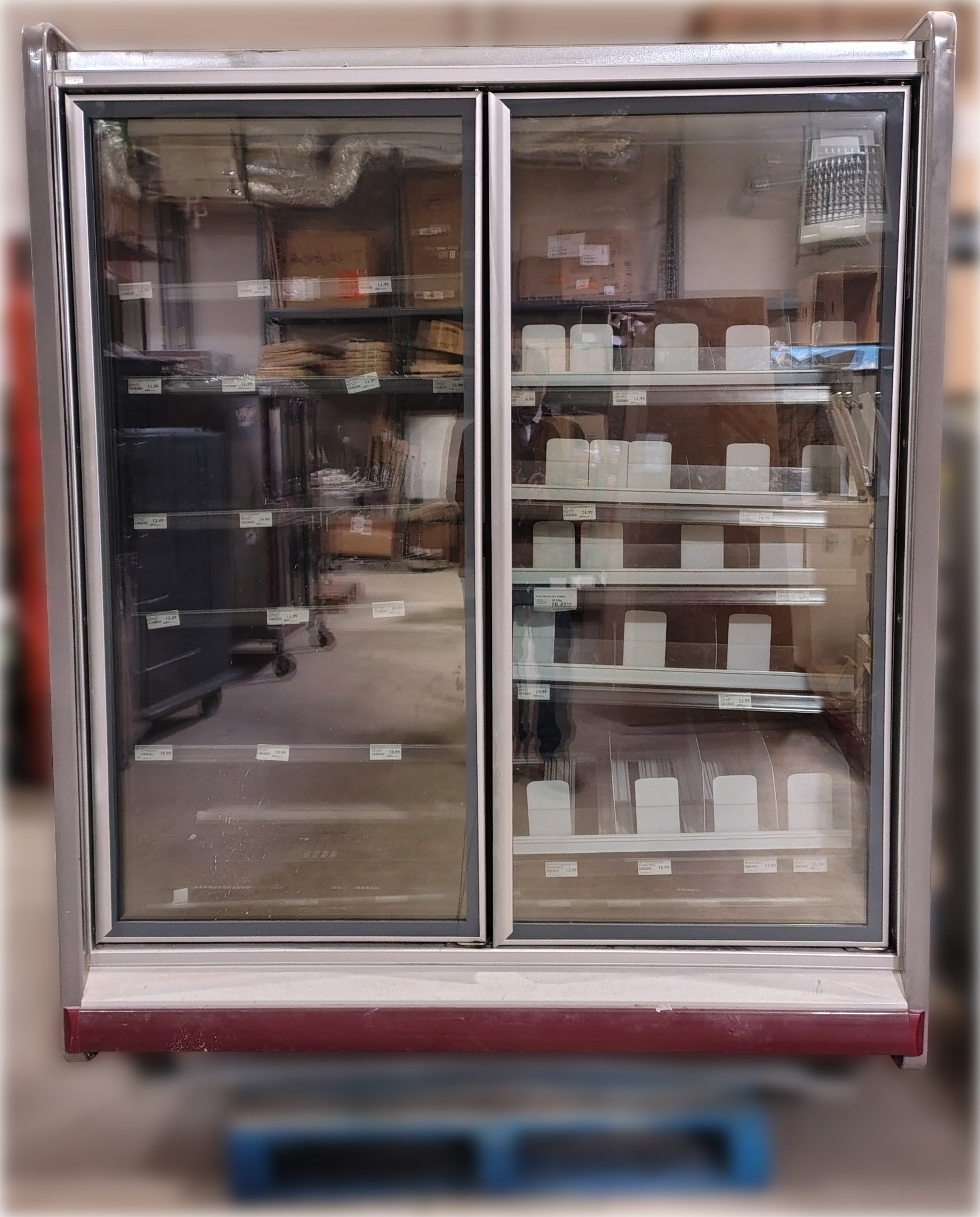

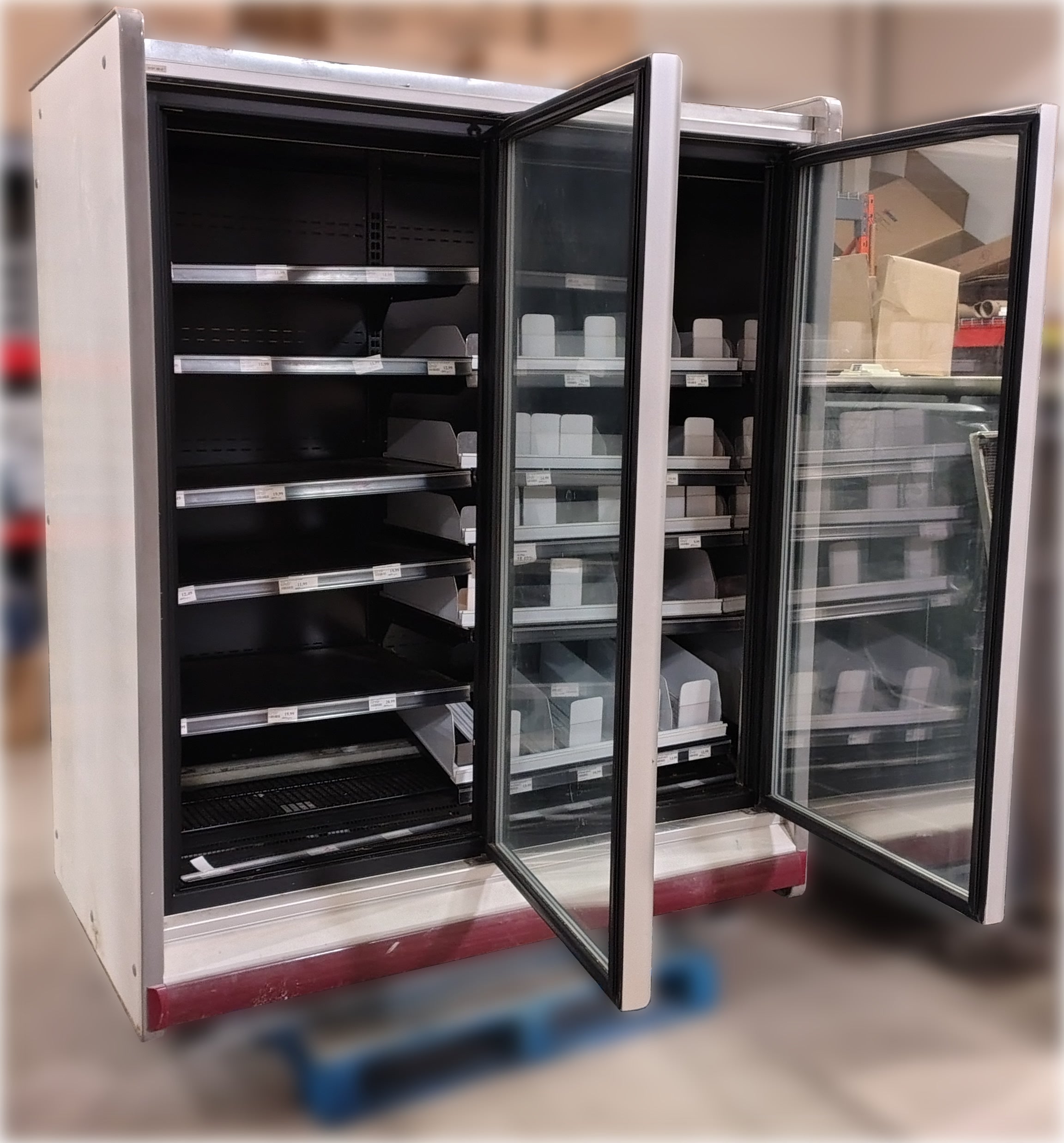

This is a 2-door commercial glass merchandiser used to display refrigerated or frozen products while keeping them at controlled temperature through a remote refrigeration system. It is built for retail food display, energy-efficient LED lighting, and standard commercial refrigeration service.
Useful service details
If you’re identifying replacement parts or ordering service, the most important identifiers are:
-
Model: BREMA 2 PORTES GC
-
Code: BR1562
-
Serial: 0608072868
-
Year: 2007.
Main technical data

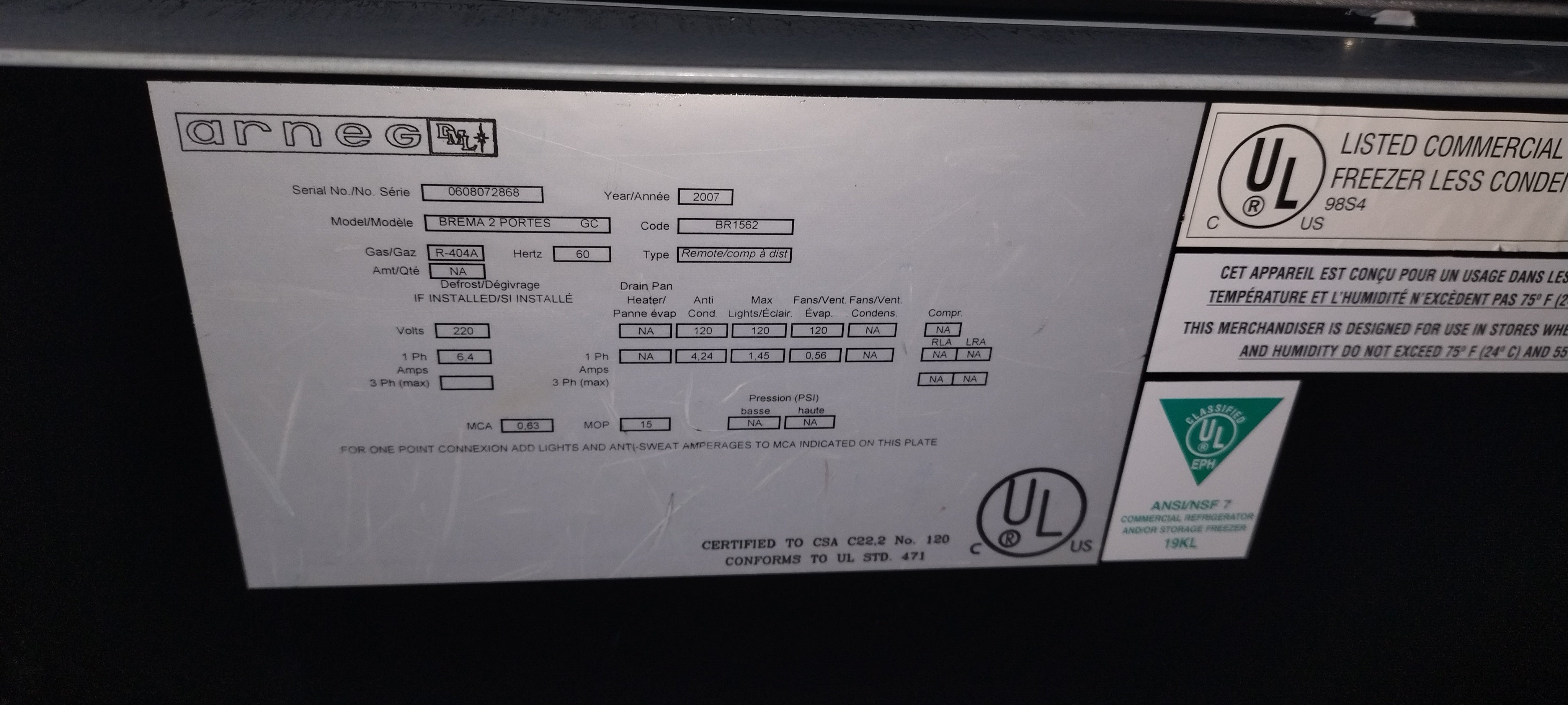

From the nameplate, the electrical and operating data are:
-
Voltage: 220 V
-
Phase / current: 1 phase, 6.4 A
-
MCA: 0.63
-
MOP: 15 A
-
Drain pan heater: N/A
-
Anti-sweat / anti-condensation: 120 W total, 4.24 A
-
Interior lights: 120 W, 1.45 A
-
Evaporator fans: 120 W, 0.56 A
-
Condenser fans / compressor: listed as N/A on the cabinet plate, which is consistent with a remote condensing system where the compressor and condenser are off-unit.
REMOTE REFRIGERATION SYSTEM NOT INCLUDED
Installation and use notes
Arneg says the case should be installed by qualified personnel, leveled carefully, and operated in a store environment not exceeding 75 F / 24 C and 55% relative humidity for proper performance. They also note the cabinet should not be placed near direct sunlight, heat sources, or strong air currents, and it should run for 24 hours before loading product.
This is a fully serviced product. It no longer has factory warranty or factory packaging. We as a reseller will warranty this machine for parts only from factory defects for 90 days from invoice date. Please don’t hesitate to contact us for more details.
